The Plans

Here are the complete architectural plans for the site, house, and garage. I submitted the plans on Friday as planned, and I was told to expect a 2 week review period. Legally, it could take as much as 4 weeks.

3D Views and Table of Contents

14 Vernon St Plans Complete Architectural Plans (3.5mb)

Quick overview:
*1500 S.F. overall; 1100 S.F. living space
*On Slab (Frost Protected Shallow Foundation so the stem walls only go 14-16″ below grade, details in the plans)
*Saltbox style
*2 Floors plus a 3rd floor room
*2 Bedrooms (Master has 15′ cathedral ceiling)
*1.5 Bathrooms
*128 S.F. West-facing Screen Porch
*324 S.F. Single car garage with storage space
*15,000 BTU per hr heat load at 0 dgr outside 65 dgr inside (Typical new construction is around 80,000 BTU/hr)
*Heated with a gas space heater on the first floor (for details on this and other appliances in our home see our appliance wish list)

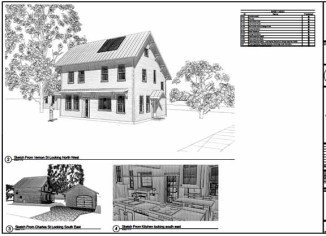

Cover sheet for plans thumbnail

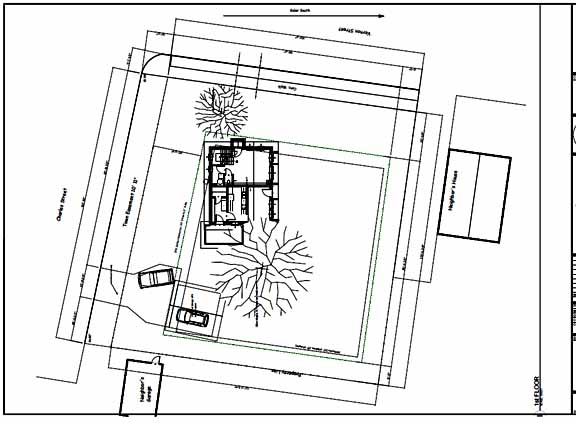

Site Plans thumbnail
